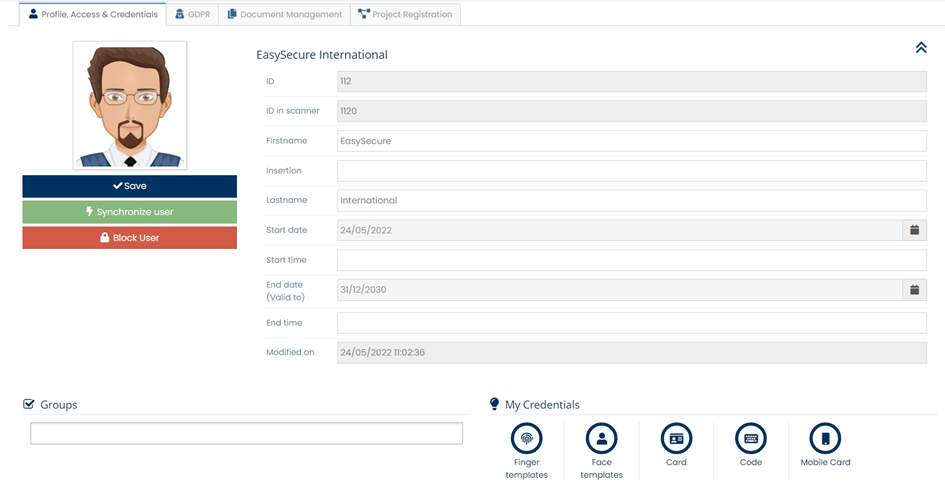

After adding a new user in your IdentySoft environment you will arrive in the following screen:


To enroll a new finger you have to click the tab 'Finger Templates' on the right side of the screen. The following window will become visible:



Please select the scanner you wish to use for finger enrollment in the drop-down menu. By default we have selected the BioMini USB scanner. (Beware! Make sure the USB scanner is connected to the PC and that the
driver has been installed.)

It is also possible to use one of the wall mounted scanners to enroll the finger. (Beware! When using one of the wall mounted scanners for enrollment you have to in the same physical LAN network as the scanners!)

Click '
Read' to enroll a new finger. The selected scanner will now light up and the finger can be placed. The red light of the fingerprint sensor will now light up. You can now place your finger completely flat across the entire sensor surface! Please make sure you place your finger correctly!

  • Make sure the finger is placed completely flat across the entire sensor surface.
  • Make sure the finger is placed straight on the sensor. When you place your finger in a crooked position it is possible that the recognition decreases.
  • Enroll the same finger at least 2 times.
  • Enroll two different fingers. We recommend using the right- and left index finger.
  • If you are facing troubles with the fingerprint recogntion you can read our tips for better recognition in the following article.

After your template is successfully registered in IdentySoft you will see a new template appear on screen. It is possible to change the name of this 'new template'  so that you know which finger has been registered.
You can do this by clicking the field named <new_template....> and adjusting the text. You can rename it to RI for example. (Right index finger.) After changing the text you can click the blue coloured checkmark to save the changed template description. The template will turn green for a second to indicate that it has been saved.




Please click the 'save' button at the bottom of the page as soon as you have enrolled all templates. Beware! Do not forget to synchronize the user after enrollment. Without a synchronization the user will not be in the scanner memory and can not be recognized.


Duress:
Some IdentySoft customers use the 'Duress' finger. The duress finger is an emergency finger used to send out a second signal. This might come in use when there is a robbery attempt where someone is forcing you to open the door. You can show your cooperation by opening the door with your duress finger and send a silent alarm to a second output at the same time.

If you want to register a duress finger in IdentySoft you will have to set the Duress switch at the bottom of the enrollment screen to YES. After that you can enroll new duress fingers.
It is also possible to change a previously templates to a duress template. You can set the switch next to the previously enrolled template to YES and then click the blue checkmark to save it.
